A New ERA In Overhead Safety
American-Made Overhead Goalposts
Superior Goalposts
Overhead Warning Barriers
Superior Goalposts provide heavy equipment operators and ground workers with highly visible overhead hazard
warning systems that are designed with workforce safety and damage prevention solutions in mind. Unlike
conventional methods, Superior Goalposts offer a more efficient and effective alternative.
Our systems are manufactured based on OSHA & INGAA guidelines, and can be used in accordance with construction safety standards relating to the hazards and safety procedures associated when operating in the vicinity overhead electrical powerlines.
Our telescopic poles are manufactured using a GRP material which means that they are non-conductive for working in the proximity of electrical hazards.
One worker can rapidly deploy Superior Goalposts with no ground disturbance, are fully telescopic and collapsible for ease of transport, and can be customized with additional warning signage and lighting to further highlight the hazard area on site and keep your workforce out of harm's way!
Only use in accordance with your local state guidelines and OSHA standards
OSHA 1926.1408 - Power line safety equipment operations.
Always determine your Minimum Approach Distance to setting up your flags or range limit/range control warning devices. See home page for more information through the official OSHA video and refer to our Download section for our product setup guide before installation.
Kit Options
We offer two different styles of system, both come with non-conductive telescopic vertical poles and extend up to 23ft high, but each is available with a different contact option determined by the width of gateway you require.
.jpg)
Poles & Flagging Kit
The poles & flagging kit comes with 90ft+ length of warning flagging and poles only. This option suits clients who opt to use their own base unit.
.jpg)
Flagging Kit
The flagging kit comes with 90ft+ length of warning flagging that is used to create the top section. The kit width can be extended with extra flagging.
Crossbar Kit
The crossbar kit comes with a rigid 4-piece crossbar. This system allows for gateways up to 23ft wide. This kit comes with 8 additional reflective crossbar flags.

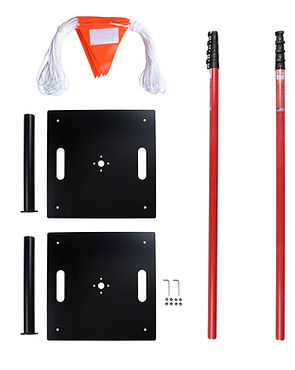

System Components
Each of our systems is built up of the following;
2 x Flat-Pack Steel Base Unit, 2 x Vertical Non-Conductive Telescopic Poles, 1 x Top Section Option.
Flat-Pack Steel Base Ballast Units
Steel bases have to be assembled before usage, simply twist-lock the steel stalk to the base plate.
The base also has 4 anchor points, one in each corner, giving users the option to fasten them to a solid surface such as timber mats, asphalt, or concrete - alternatively, sandbags or other ballast weights can be utilized to provide adequate stability to the system's base units.

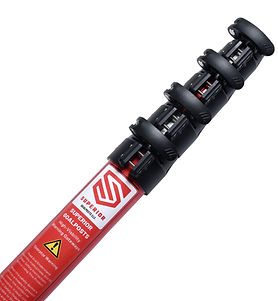

Vertical Non-Conductive Telescopic Poles
The vertical non-conductive telescopic poles are designed in a highly visible Red and White color. The poles have a collapsed length of 5.8ft, and can fully extend to a height of 23ft. The Poles are Insulated up to 75Kv.
Our Telescopic Clamping System For Simple and Easy Set-Up. Just open the clamp lever, extend the pole and the close the clamp again fully to engage the lock.
The Top Sections
Flagging & Crossbars
The systems come with two different top section options; each offering different styles of heigh restriction gateways to suit your site requirements.
The flagging can create a gateway up to 90ft+ wide, and the the crossbar system offers a more fixed rigid solution, which can be broken down into 6.5ft sections (6.5ft,13ft,19.5ft,26ft). The crossbar is attached with Silicone Elbows to ensure it stays fixed.
WARNING - TIP OVER HAZARD
Product may cause serious injury or death. Only use Telescopic Poles with a Flat-Pack Twist Lock Steel Base, Always ensure Bases are anchored down securely or adequate ballast is added to remove the Tip Over Hazard Risk.
Always refer to product guide and advisory notes before setup or installation.
WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
